Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Description:
Yahong CNC gantry type cutting machine is specially designed for metal plate cutting, it is characterized of high automation and efficiency.This CNC steel plate cutter is gantry type structure with bilateral driving way.The effective cutting size can be customized upon requirement which depend on plate size.
It can match with one or multiple plasma and flame(gas/oxygen) cutting torch.
Feature:
1. The high precision originate from Feimate power(optional) and high pressure adjustable arc.
2. Perfect design and good looking cutting surface make it the best suitable choice for all kinds of thick plates.
3. Reasonable slopes leakage of material design, make the finished work piece and scrap material slopes fell to both sides of the rack feet, safe and convenient.
Specifications:
Technical Parameters for I Light Gantry CNC Cutting Machine
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 7.0 Inches |
| 3 | Effective Cutting Size | 1600*4000mm |
| 4 | Railway Size | 2000*5000mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--200mm |
| 7 | Lifting body | 1 lifting body standard |
| 8 | Cutting Speed | 0-8000mm per minute |
| 9 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 10 | Drive Mode | Bilateral drive |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Competitive Advantage:
1. graphic display function
2. English interface and other 8 languages
3. Excellent graph library ,48 graphic
4. Steel plate correction function
5. Kerf can be automatically compensated
6. Cutting can continue when power fails
7. Continuous return can be done
8. Positioning and cutting can be done randomly
9. Off-line cutting can be done
10. Online upgrading function
Applicable Material:
stainless steel plate, iron plate, galvanized plate, titanium plate, aluminum and other metal plates.
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.

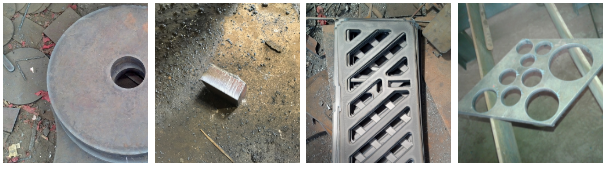

Cutting Samples:
