Heavy Duty Gantry CNC Plasma Cutting Machine 220V 10.4 Inches LCD Display
Description:
The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting, it is characterized of high automation and efficiency, easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double - driven system, working size can be customized upon requirement.
Competitive Advantage:
1. It suitable for industrial applications with long time and can meet the high standards of the precision, performance and simple operation.
2. Incremental sensors for long variable groove, constant angle torch height control provided by the plasma arc voltage.
3. With the feature of easy installation, human-computer interface, easy operation, stable work, elegant appearance.
4. They can be used to cut almost all kinds of metal plate automatically.
Specifications:
Light weight, easy to install
Large size cutting area
Gas and plasma dual use
Automatic ignition device on gas cutting torch
Feature:
1.C utting head with cooling system can quickly cool surface of material to avoid burr and residue.
2. Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.
3. Processed Materials of small and neat kerf ,without secondary processing.
4. Advanced digital control system,large capacity storing function, convenient to read and process.
5. Compatible software: Ucancam,Type 3, Artcum,etc.
6. Applicable industry: advertising industry, arts and handicrafts cutting, metal plate cutting.
Technical Parameters for Heavy Gantry CNC Cutting Machine
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 10.4 Inches |
| 3 | Effective Cutting Size | 3000*10000mm |
| 4 | Railway Size | 4000*12000mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--150mm |
| 7 | Lifting body | 2 lifting body |
| 8 | Cutting Speed | 0-8000mm per minute |
| 9 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 10 | Drive Mode | Bilateral drive |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

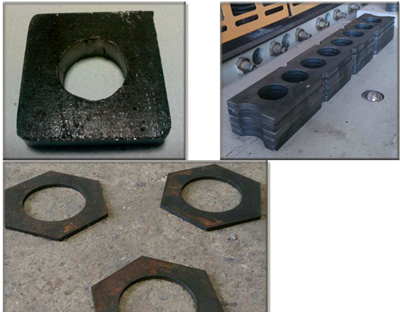

Cutting Samples:
