Multi Languages Gantry Flame / Plasma Cutter CNC Machine Arc Voltage Height Control
Description:
Heavy Gantry CNC plasma cutter is an excellent model designed and manufactured by Xuzhou Yahong CNC Equipment Factory. Its main characteristics is that this model uses bilateral drive mode so that the machine can operate smoothly, have high locating accuracy and simple & good appearance. Moreover, the modularized design makes machine components have strong exchange ability and equipment function be expanded more simply & conveniently. The user can configure plasma cutting torches in different sizes according to the process requirements. Its advantages is high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance.
Applications:
CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.
Technical Parameters for Heavy Gantry CNC Cutting Machine:
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 10.4 Inches |
| 3 | Effective Cutting Size | 3500*10000mm |
| 4 | Railway Size | 4000*12000mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--150mm |
| 7 | Lifting body | 1 lifting body standard |
| 8 | Cutting Speed | 0-8000mm per minute |
| 9 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 10 | Drive Mode | Bilateral drive |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Competitive Advantage:
1. Imported guide rail, double four ball slider, heavy loading capability, smooth operation, high precision, long life.
2. whole steel structure, high temperature tempering after welding to eliminate the stress treatment, distortion free, strong and lone life.
4. The plasma with high cutting speed, high precision, small slit, neat. Under traditional CNC system ,improved control method of cutting, avoid the secondary processing.
5. During the plasma is cutting,if the torch of plasma break at any point ,take the torch out of the machine, adjust the torch, then the torch will automatically return to break points
6. Plasma can be automatically increased functionality, automatic ignition function, during working time, can be arbitrary adjust the speed up and down, but with stable performance.
7. Using advanced domestic CNC control system, compatible with Fastcam Design Software

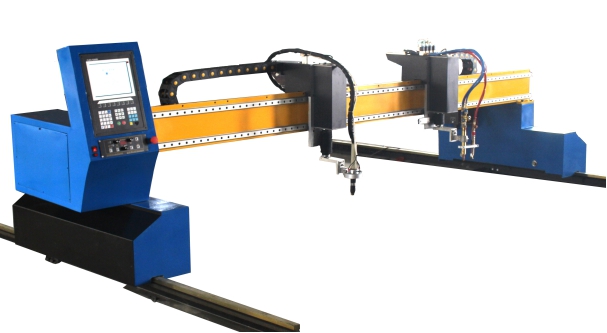

Heavy Gantry CNC Cutting Machine:
