500w Fiber Laser Cutting Machine , Laser Cut Out Machine High Speed With OEM Service

Name: 500w Fiber Laser Cutting Machine Laser Cut Out Machine High Speed With OEM Service
Brand: Yahong
Price: 1 USD

China 500w Fiber Laser Cutting Machine , Laser Cut Out Machine High Speed With OEM Service wholesale

Brand Name : Yahong

Model Number : YH3015

Certification : CE / ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T , L/C , Western Union, MoneyGram

Supply Ability : 20 pcs per month

Delivery Time : 30 days after received your payment

Packaging Details : lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.

Product Name : Fiber laser cutting machine

Applicable Material : Metal

Cutting Speed : 30m/min

Cutting Thickness : 18mm

Laser Type : Fiber Laser

Service : OEM

Standard : CE / ISO

Cutting Area : 3000*1500mm

Cooling Mode : Water Cooling

Contact Now

500W Small Sheet Laser Cutting Machine , Max Cutting Size 3000 * 1500 mm

Description:

We can choose brand laser head origins from USA, Germany. It depends on customer’s request, or we would suggest according to the laser power you choose.

We also have our own laser head design, very user-friendly for new user to adjust focus distance, and convenient to change protection glass or do maintenance work.

Surely laser head is standard supplied with closed-loop control Auto focus system.

Technical Parameters for Fiber Laser Cutting Machine :

Item		Technical Parameters
Type		3015	4015	4020
Max Cutting Size(mm)		3000X1500	4000X1500	4000X2000
Max Height of The Workpiece(mm)		90	90	90
Effective Travel	X Axis (mm)	3050	3050	4050
	Y Axis (mm)	1550	1550	2050
	Z Axis (mm)	100	100	100
Positional Accuracy	X Axis(mm/m)	±0.04	±0.05	±0.05
	Y Axis(mm/m)	±0.04	±0.05	±0.05
	Z Axis(mm/m)	±0.01	±0.01	±0.01
Repeated Positioning Accuracy	X Axis(mm)	±0.03	±0.03	±0.03
	Y Axis(mm)	±0.03	±0.03	±0.03
	Z Axis(mm)	±0.005	±0.005	±0.005
Repid Positioning Speed	X Axis(m/min)	80	80	80
	Y Axis(m/min)	80	80	80
	Z Axis(m/min)	30	30	30
Accelerated Sppeed(G)		1
The Laser Power(W)		500/700/1000/1500/2000/3000
The Power Consumption of The Machine Tool((Kwh)		4.85	4.85	6.3
Level Protection		IP54	IP54	IP54
Total Weight(T)		4.35	5.45	6.25
Boundary DimensionL×W×H(mm)		4191X2520X1326	5390X2520X1326	5391X3105X1326

Competitive Advantage:

1. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.

2. Support to set separate lead in/out speed according to adjustment of laser power.

3. Big storage, allowing user to save all cutting parameters to use it again on same material.

4. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.

5. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.

Features:

1. Same as most manufacturers, we use Panasonic/Yaskawa servo and Shimpo gearbox, but how to fix it on machine and commission it makes big difference.

2. It matters to machine’s fast move precision, and long-term work stability.

3. We can offer China fiber laser power 500W, and 800W/1KW will be mature soon.Over 1000W, we only suggest IPG, SPI such brand fiber laser.

4. We may supply it with machine for customer’s convenience, or allow customer to buy it on their own if it is a better option.

5. We have assembled CNC systems with many famous brand controllers, like Hypertherm’s EDGE, Burny, Fanuc, Fagor controllers, collected rich experience of CNC system building.

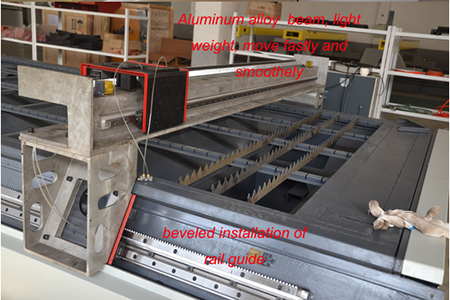

Laser Cutting Machine:

500w Fiber Laser Cutting Machine , Laser Cut Out Machine High Speed With OEM Service
