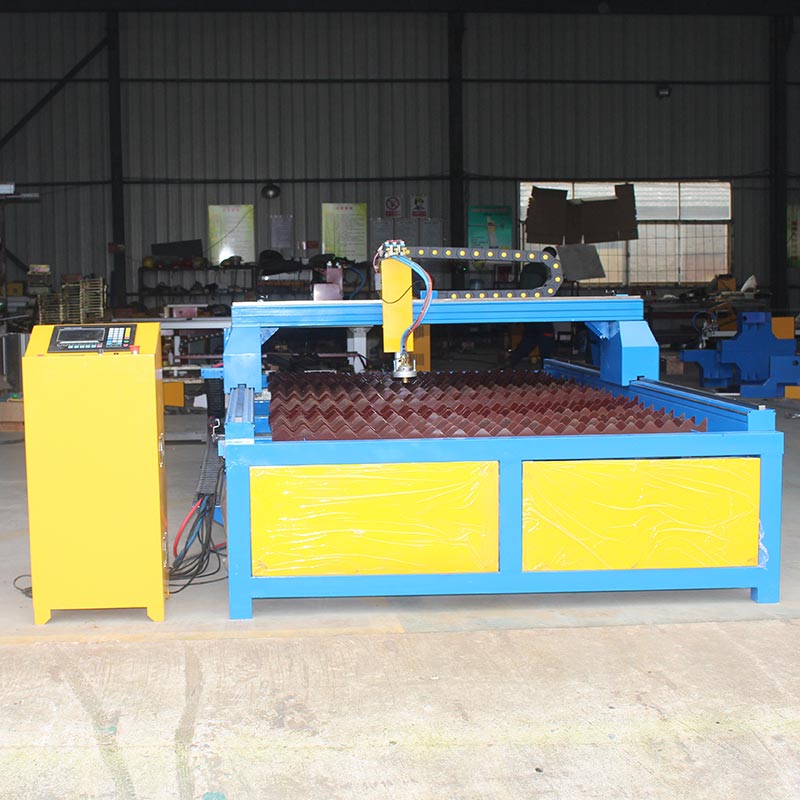

1500 * 6000MM Table Type CNC Plasma Cutting Machine Cutting Speed 0-8000mm/min
Description:
1. It is integrated with high speed, high precision, and miniaturization, and miniaturization, and the structure of the machine is made from special industrial aluminum profile, which is separated from the cutting table.
2. With the feature of easy installation, human-computer interface, easy operation, stable work, elegant appearance, they can be used to cut almost all kinds of metal plate automatically.
3. With unique handling of breakpoint and interruption of power supply, it can move forward and backward according to the track.
4. Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath. The level difference of platform remains in 0-1.5mm.
5. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
Technical Parameters for Table CNC Cutting Machine:
| 1 | Cutting shape | table type |
| 2 | LCD Display Dimension | 7.0 Inches |
| 3 | Effective Cutting Size | 1500*3000mm |
| 4 | Railway Size | 2000*3500mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--200mm |
| 7 | Cutting Speed(Stepper Motor) | 0-8000mm per minute |
| 8 | Height Control | Arc voltage height control (THC) |
| 9 | Drive Mode | Bilateral drive |
| | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
Table CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.
FAQ:
1.How can I get the training after I order the machine?
Machine manual and operation CD will be supplied with you for each machine .
We have processional engineer team to supply 24 hours service online.
Engineer available to service machine overseas
Welcome come to our factory to get training in any time.
2. Do you arrange shipment for the machine?
Under CFR or CIF terms, we are responsible for shipping from China port to the destination port. Under FOB/EXW terms, clients shall arrange shipment by themselves or their agent.
Machine:
Product Tags:
|
|

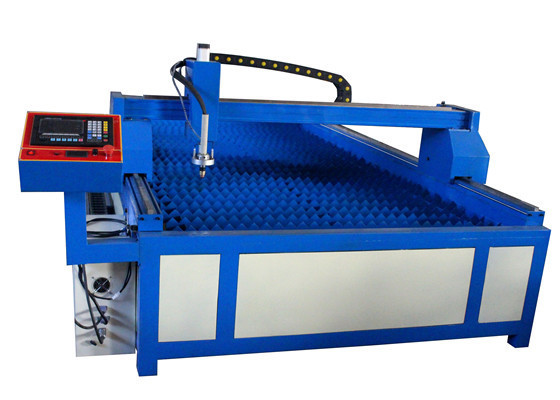

0-8000mm/min Table Plasma Cutting Machine Images
|
