Automatic Table Plasma Cutter / Flame Cutting Machine With Stepper Motor
Description:
1. High Quality cut performance ,Fast cutting speed,high precision and low cost.
2. With firm and reasonable structure,the machine is easy to operate and durable for use.
3. The cutting incision is thin and tidily and can avoid the second processing.
4. High configurated CNC system,auto arc-striking and stable performance.
5. Working with computer and support G code and files of Uncannest software (specilized in
cutting metal material) (optional Fastcam software).
Technical Parameters for Integral Table CNC Cutting Machine:
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 7.0 Inches |
| 3 | Effective Cutting Size | 1500*3000mm |
| 4 | Railway Size | 2000*3500mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--200mm |
| 7 | Cutting Speed(Stepper Motor) | 0-8000mm per minute |
| 8 | Height Control | Arc voltage height control (THC) |
| 9 | Drive Mode | Bilateral drive |
| 10 | Cutting Mode | flame and plasma |
| 11 | Ignition device | Auto ignition device |
| 12 | File transmission | USB transmission |
| 13 | Gas Pressure | Max. 0.1Mpa |
| 14 | Oxygen Pressure | Max.0.7Mpa |
| 15 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 16 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 17 | Cutting accuracy | ±0.5mm |
| 18 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 19 | Rated Power Supply | 1500W |
| 20 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
It is widely used in hardware, precise machinery, automobile components, glasses, clocks and watches, precise cutting, medical equipment, instrumentation, and other metal-related industry and environmental protection equipment, steel and other large electrical types of machinery manufacturing and processing industry.
Packing:
lining--anti-static film package firstly, waterproof, moistureproof.
Intermediate--around the perimeter of the box, there is bubble.
Outer--export standard packing, fumigation-free plywood.
Delivery Time:
The machine need 7 working days.
We must ensure everything is ok,then can send you it.
After sale services:
1. We provide you the friendly English User manual and Testing Video for free.
2. 24 hours technical support by email or calling.
3. 12 Months warranty Quality guarantee and Charge free technical support forever.
4. Videos of operating the machine are available.

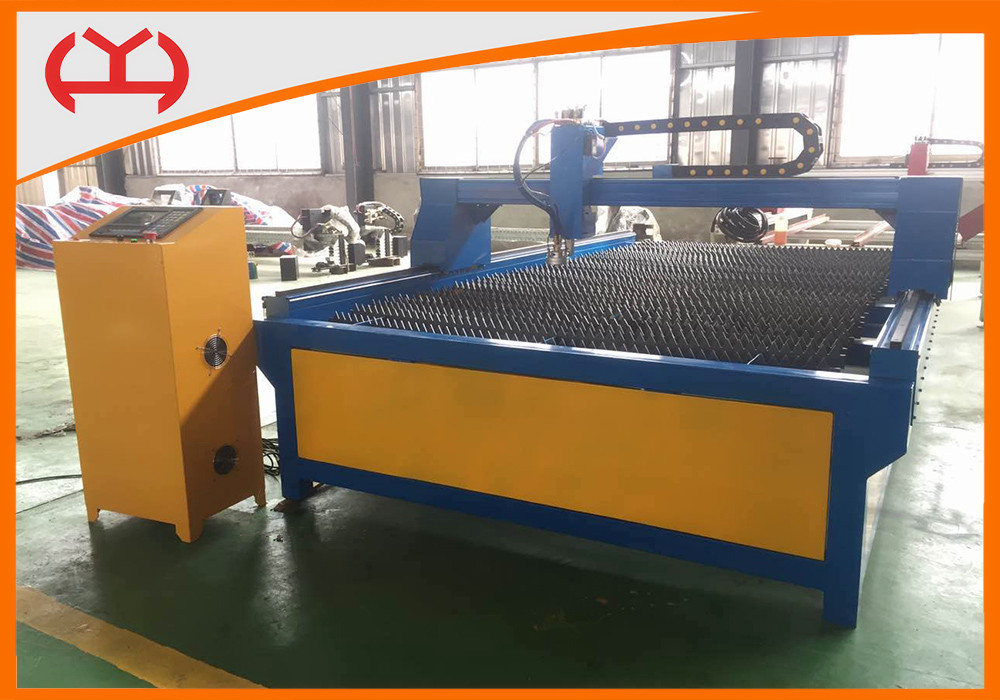

Table CNC Cutting Machine:
